Armadillo A2 & A3 Annex Plus

Introducing the Armadillo A2 and A3 Annex Plus



The perfect addition to enhance your camping experience! Designed specifically for your Armadillo A2 or A3 setup, this annex provides an adaptable and versatile hub for various purposes. With a ceiling height ranging from 75 to 86″ and a generous 70 square feet of living space, you’ll have plenty of room to utilize it as a cooking area, storm shelter, sunshade, kennel space, or private changing area. The user-friendly setup, three entry points, and weather flaps make it a convenient and practical addition for your rig.



Specifications:

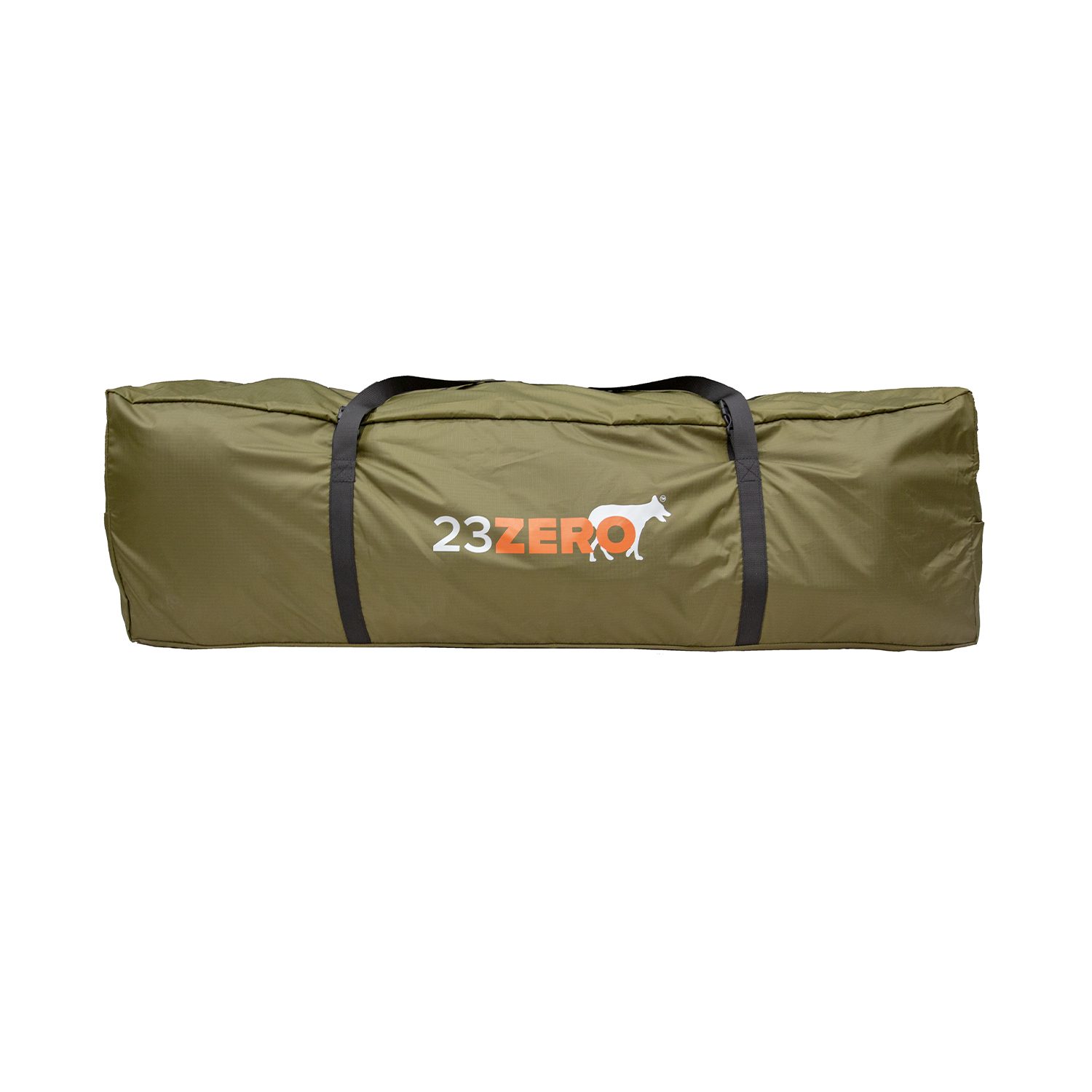

  • Storage Size: 36” W x 9” L x 9” H
  • Storage Weight: Approximately 18.5lbs
  • Material: Olive colored ripstop Oxford Polyester

$599.00$699.00

-

Description

Spacious Living Area: With a ceiling height of 75 to 86” and approximately 70 square feet of living space, the annex extends your sheltered area significantly and serves a multitude of purposes, such as a cooking area, storm shelter, sunshade, kennel space, or private changing area.

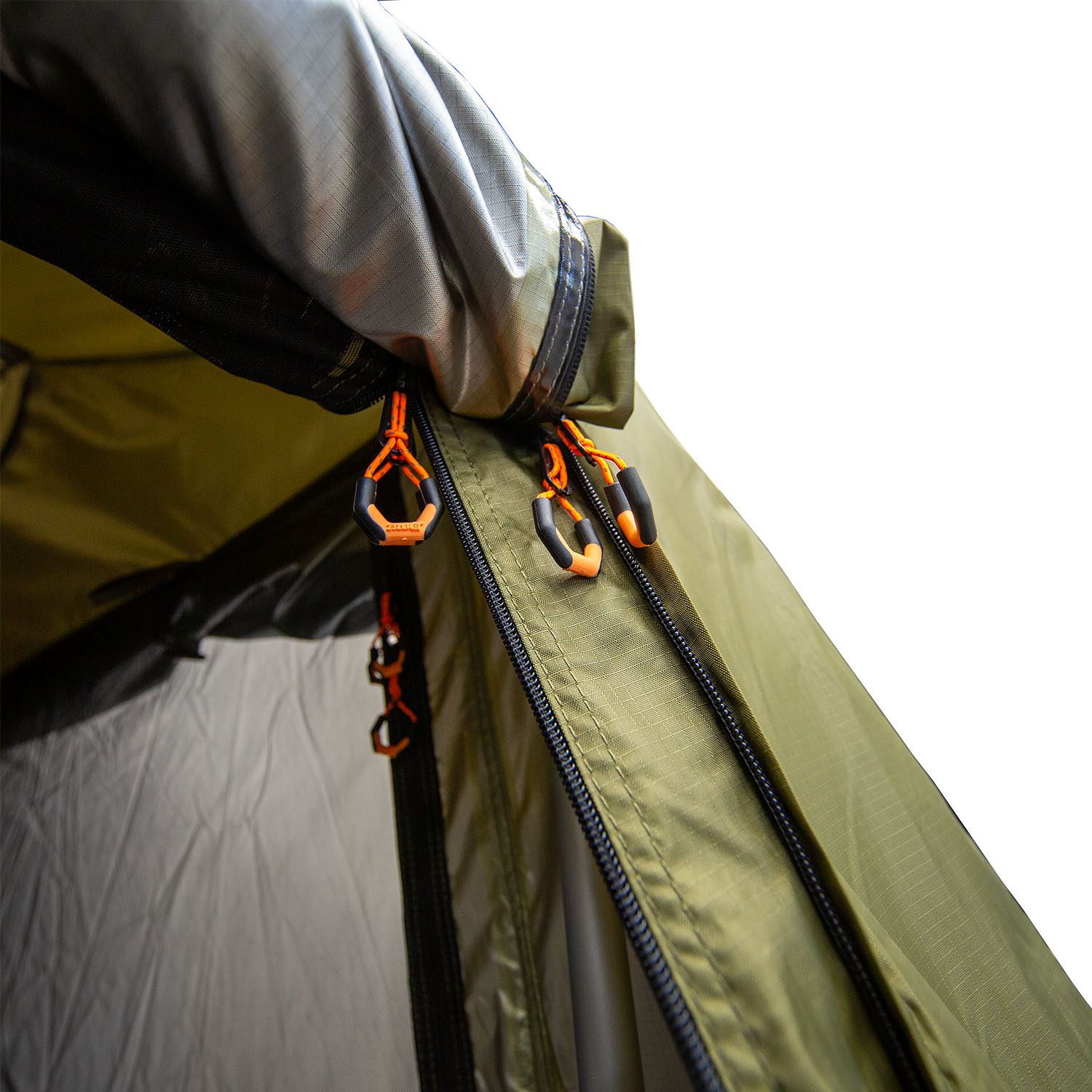

Effortless Installation: Setting up the annex is a breeze. Simply zip the annex to the tent’s rain fly, slide it into the sail track (C-Channel), stake down the corners, deploy the telescoping poles, and secure the guy lines.

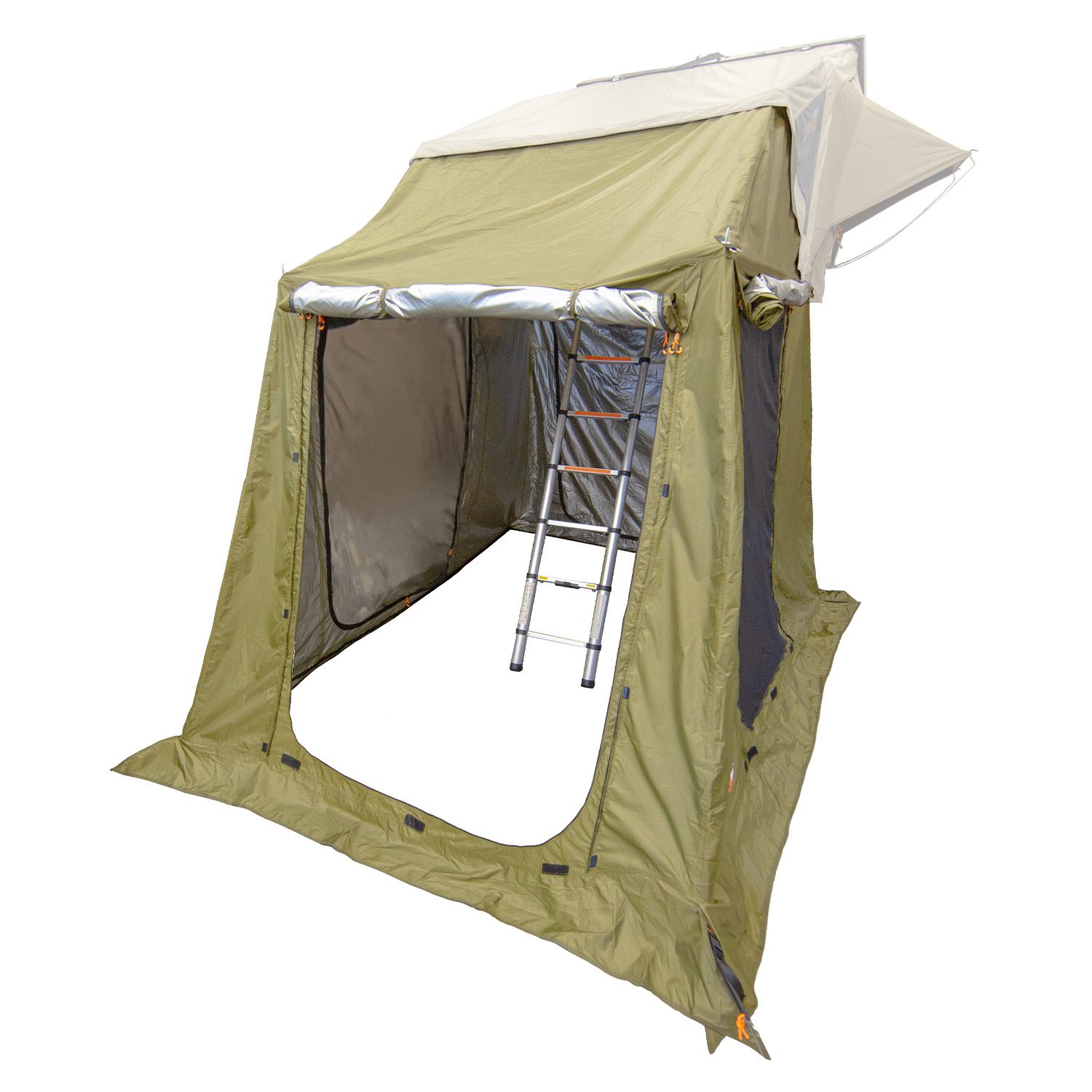

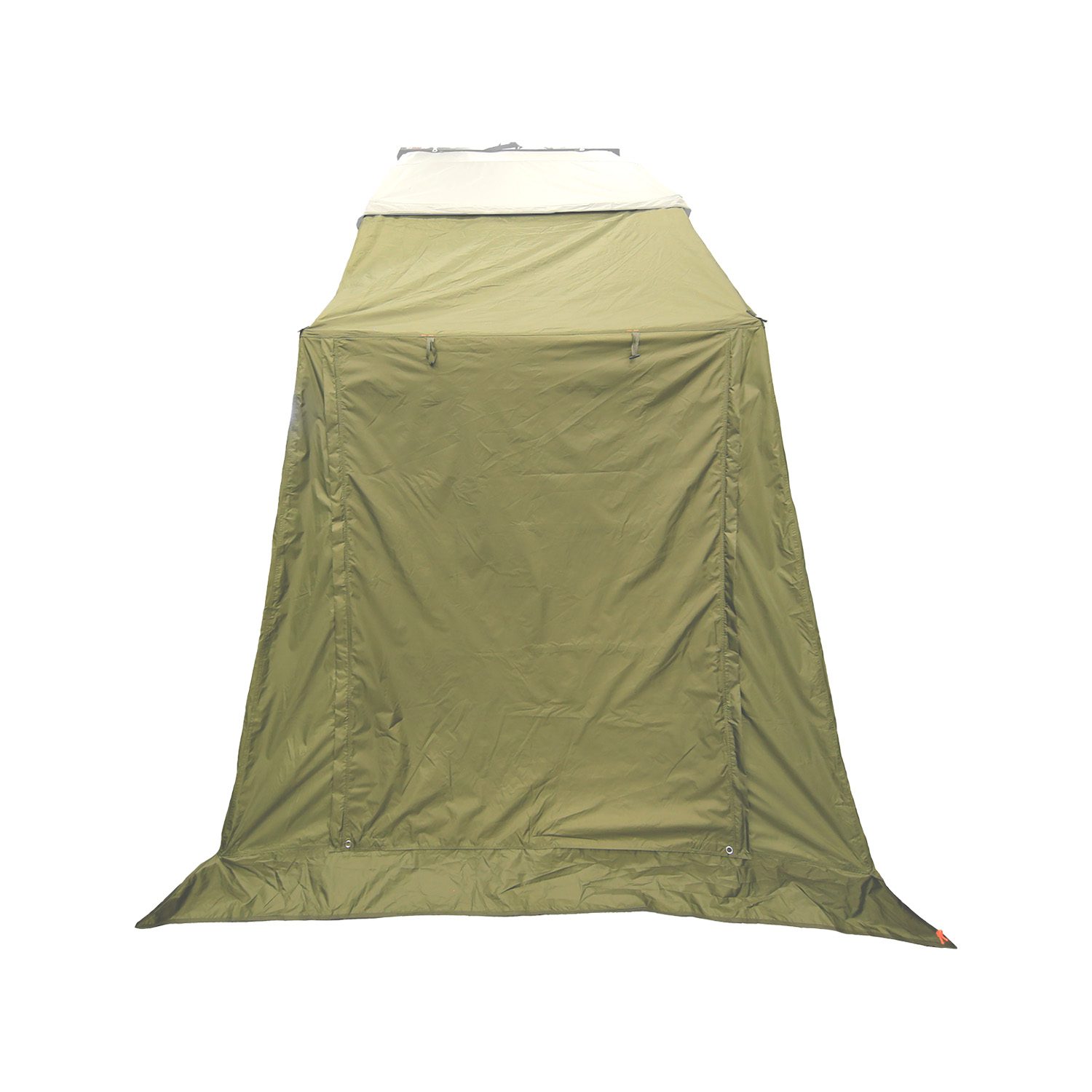

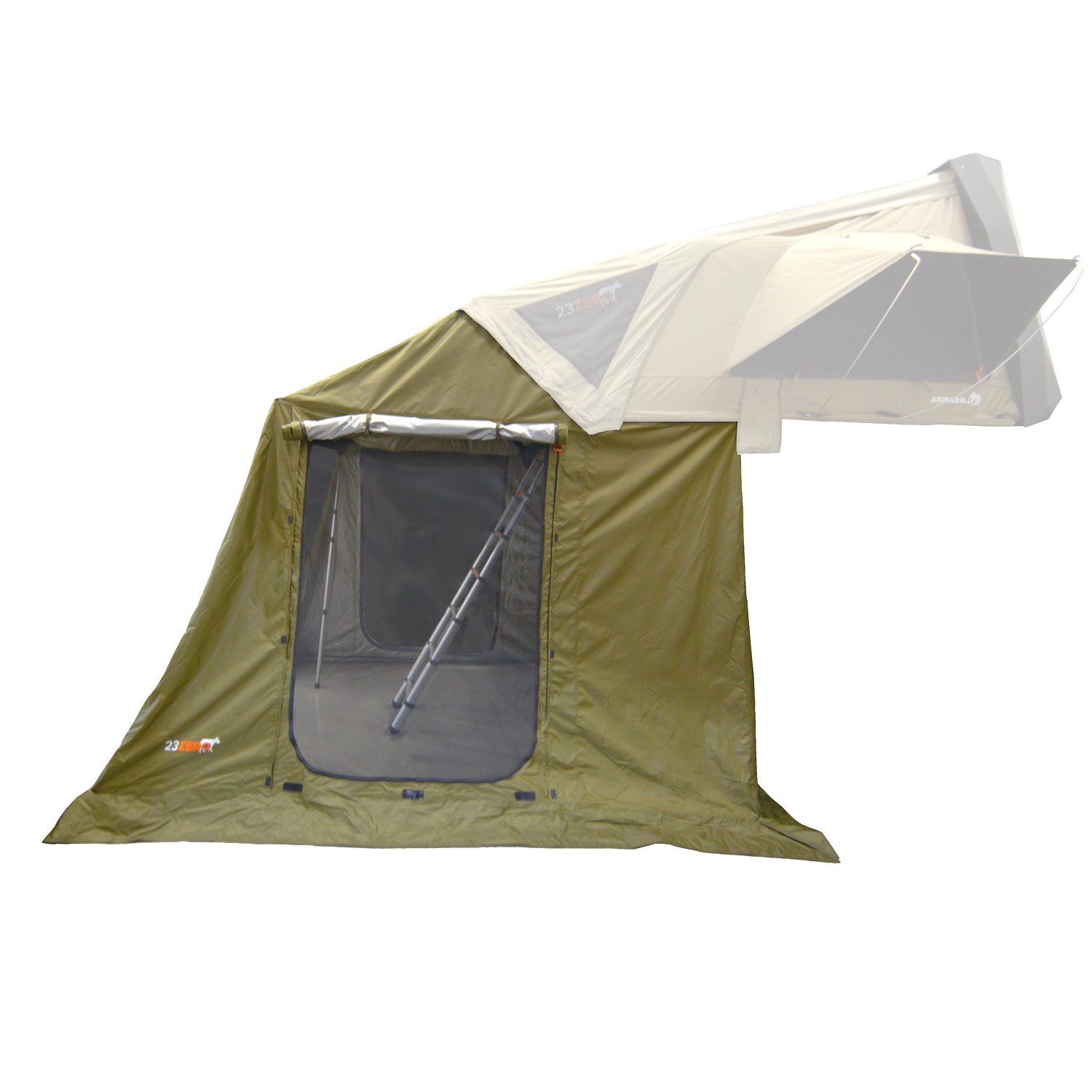

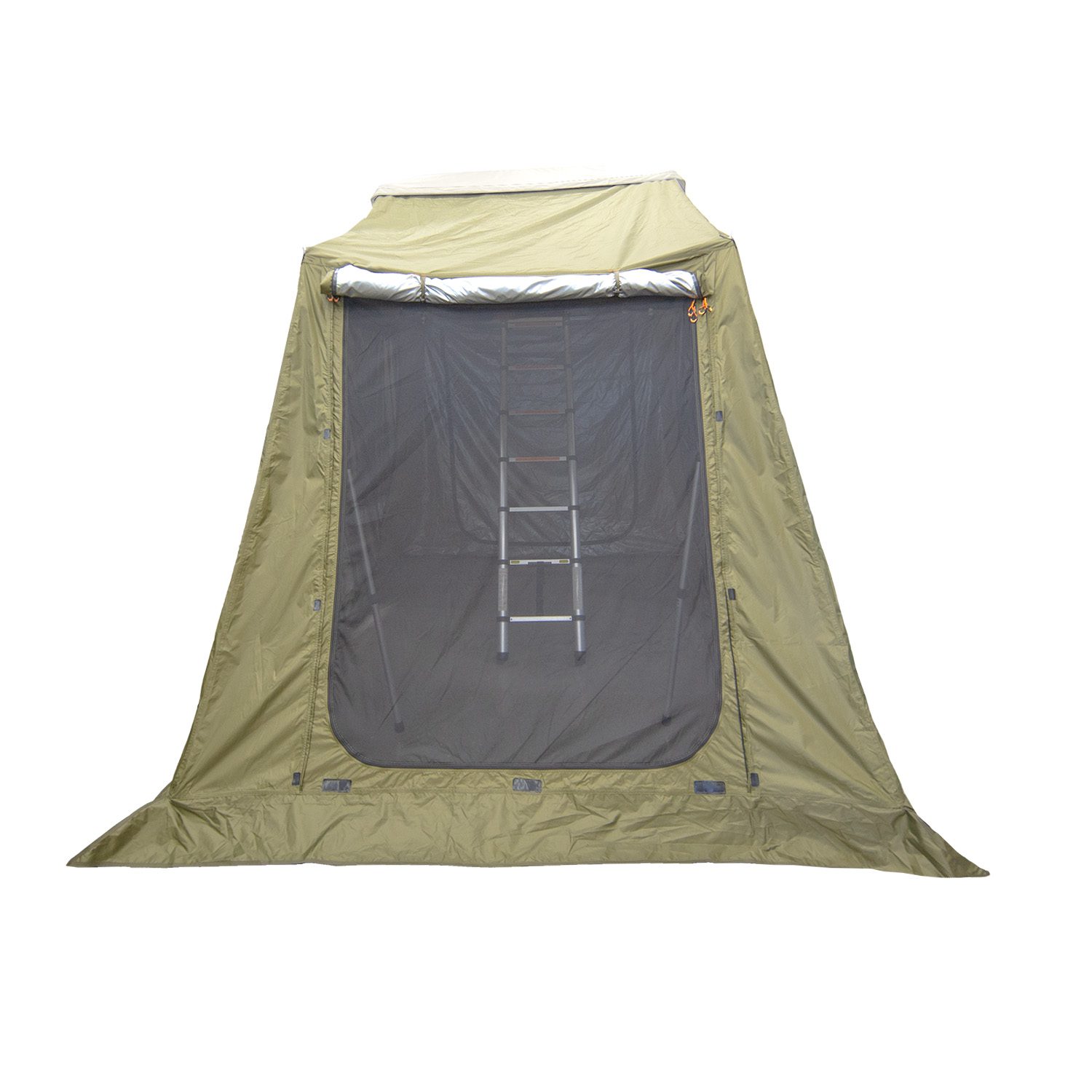

Multiple Entry Points: The annex features a rear door that allows convenient access to your vehicle. Additionally, it sports a generously sized front door and two side doors, all equipped with screens to facilitate optimal ventilation while keeping insects at bay. The weather flaps on its lower section can be easily weighted down to minimize drafts and help to ensure comfort in changing weather conditions.

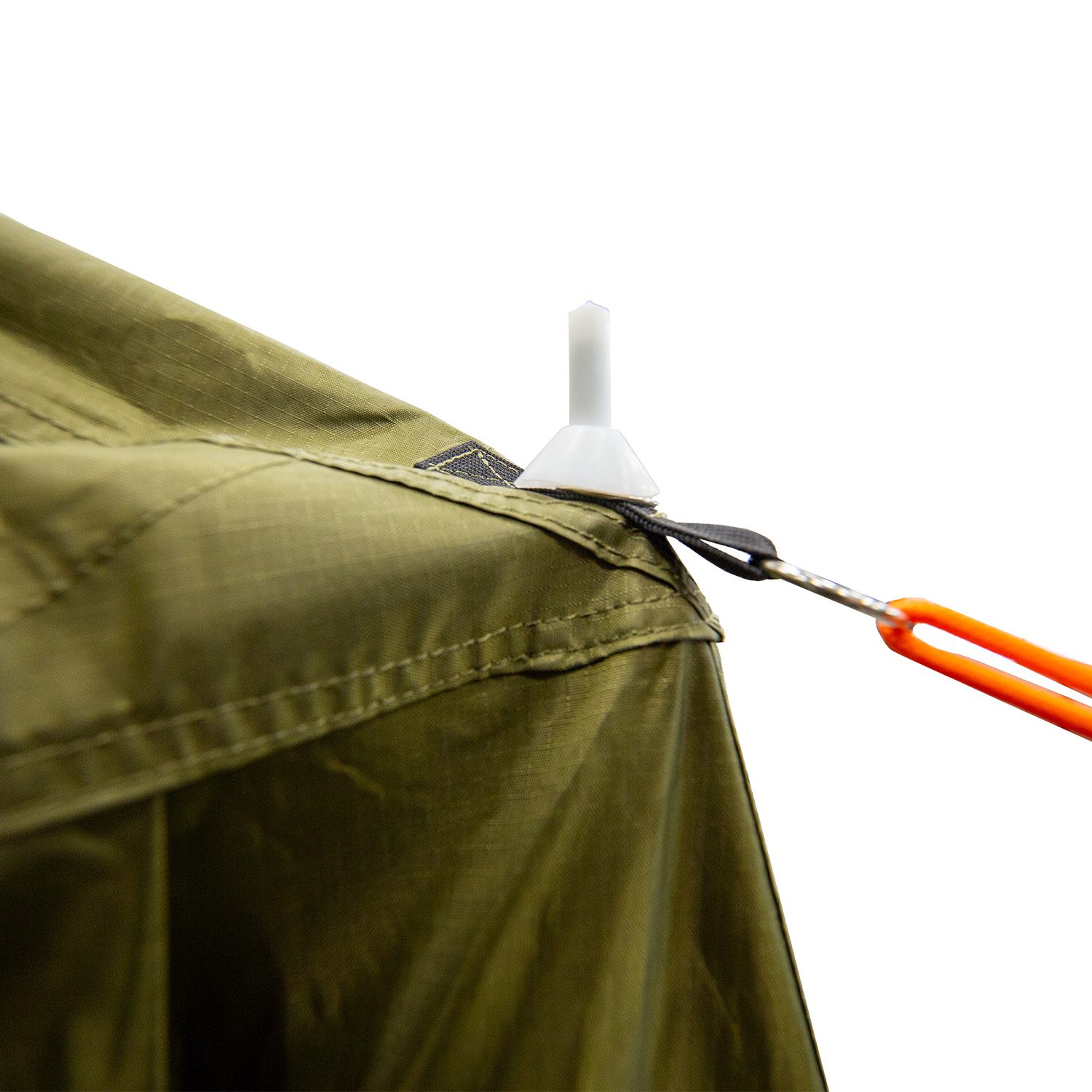

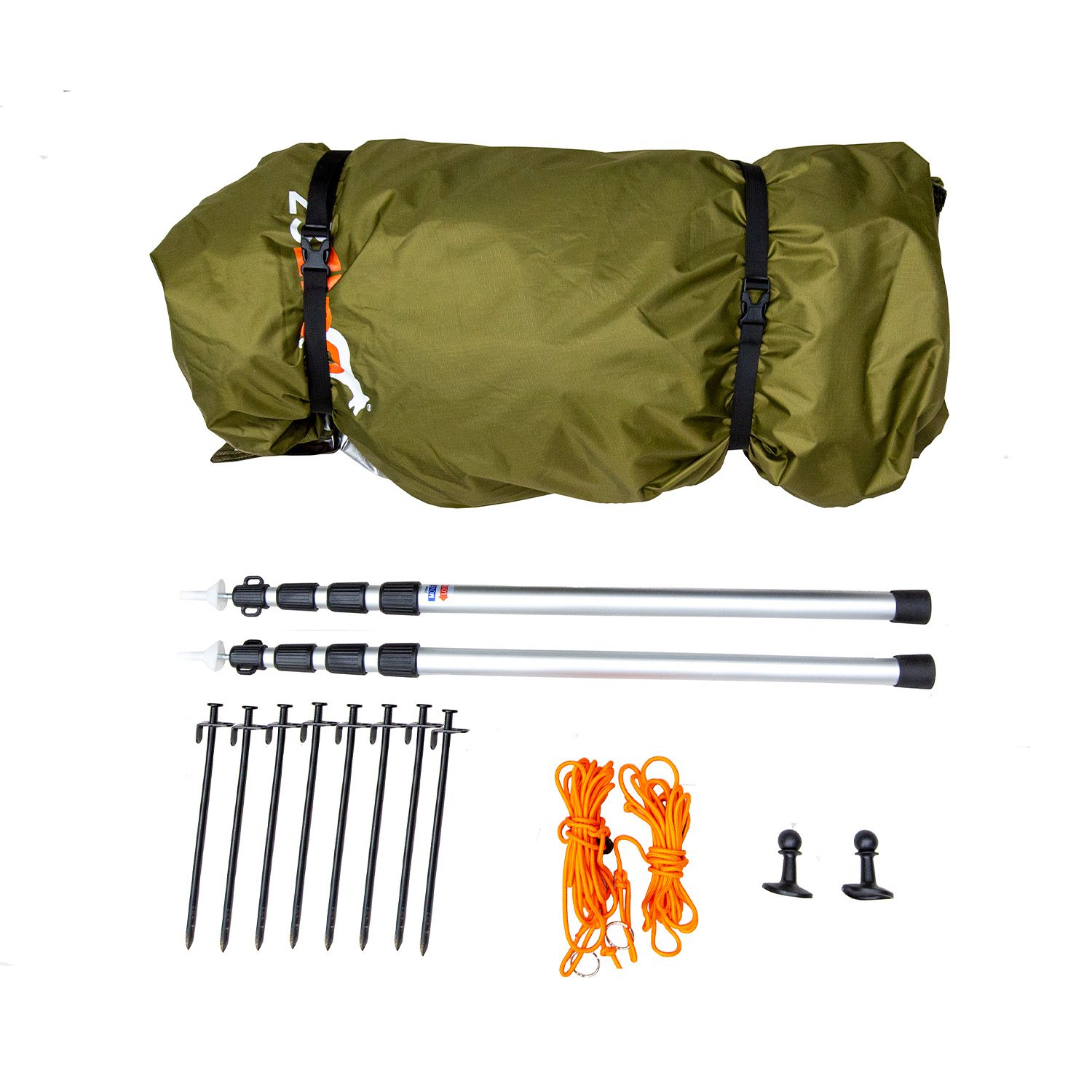

Includes: Your purchase includes the annex itself, stakes, guy lines, a set of two telescoping poles, pole topper rain stoppers, handy stuff sacks, and a convenient storage bag.

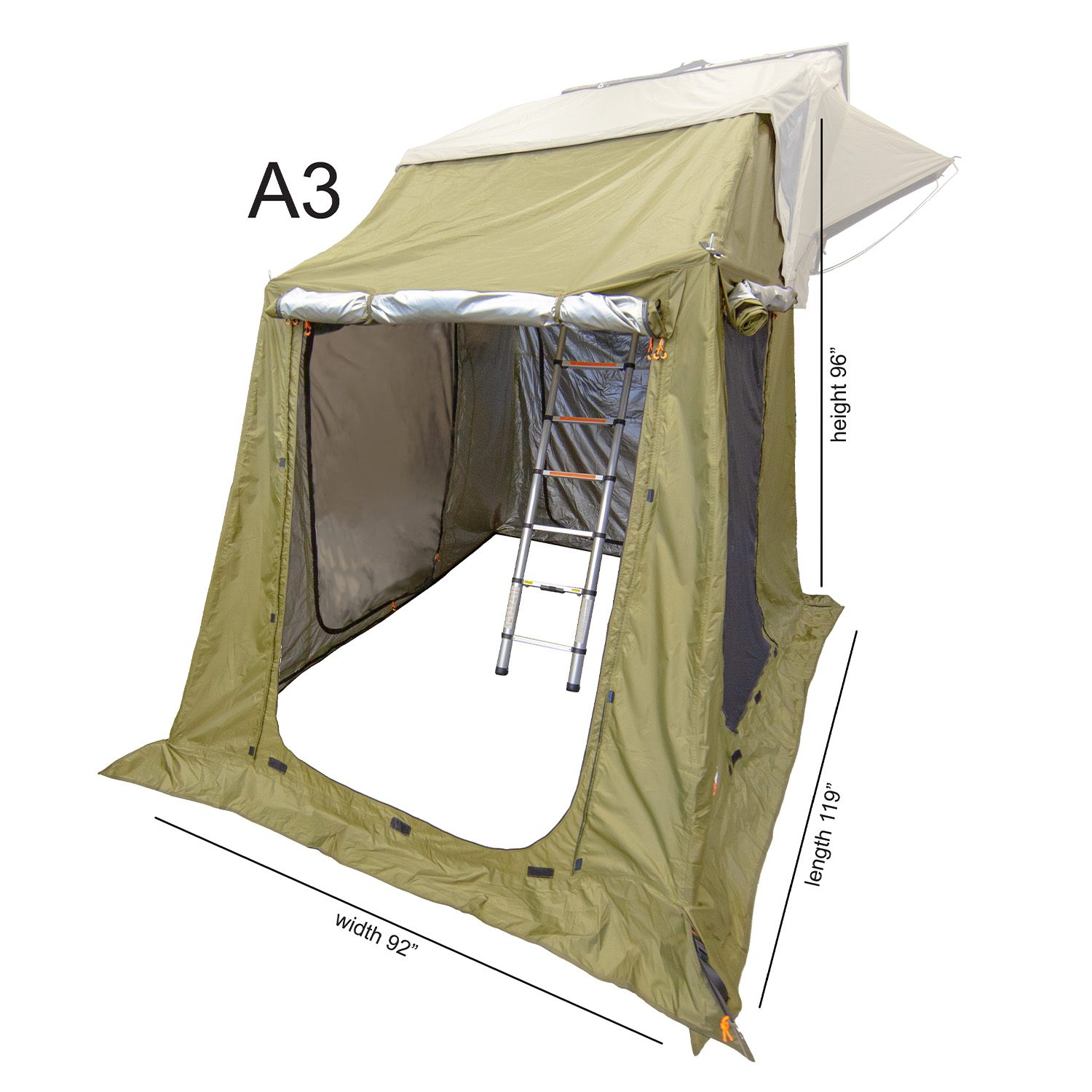

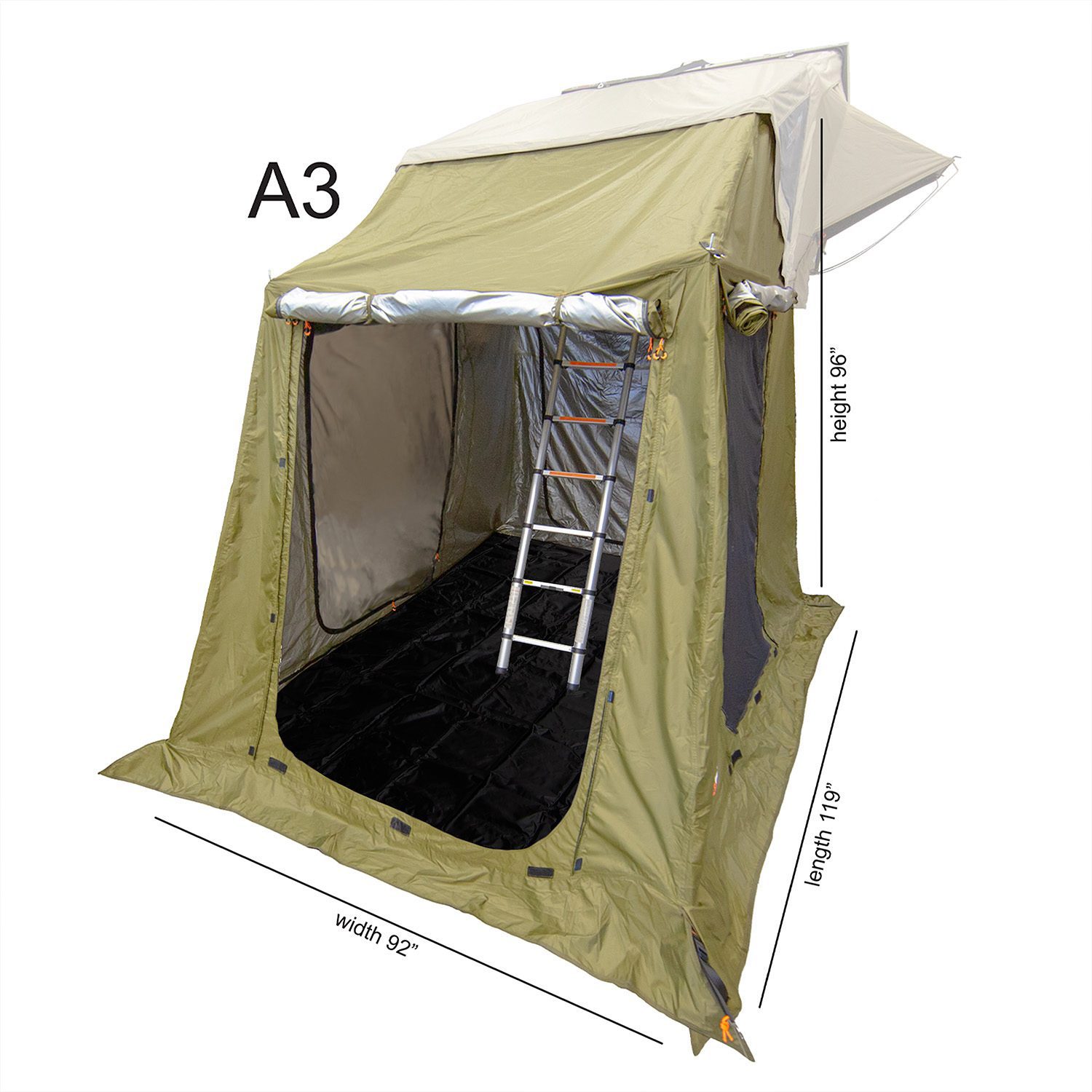

Technical Specifications

A2

A3

Floor / Ground Coverage 88” (W) x 120” (D). Approx. 70 sq ft 88” (W) x 120” (D). Approx. 70 sq ft
Inside Height (depends on the ground) 72” to 86” H 72” to 86” H
Mounting Height. Depending on the ground.  75” H +/- 3” 75” H +/- 3”
Pole Length 30” to 91” 30” to 91”
Stored Weight 18.62 lbs 18.64 lbs
Stored 36” W x 9” L x 9” H 36” W x 9” L x 9” H
Door Size (U Shaped) 56” W x 65” H
Side Door Size 47” W x 65” H

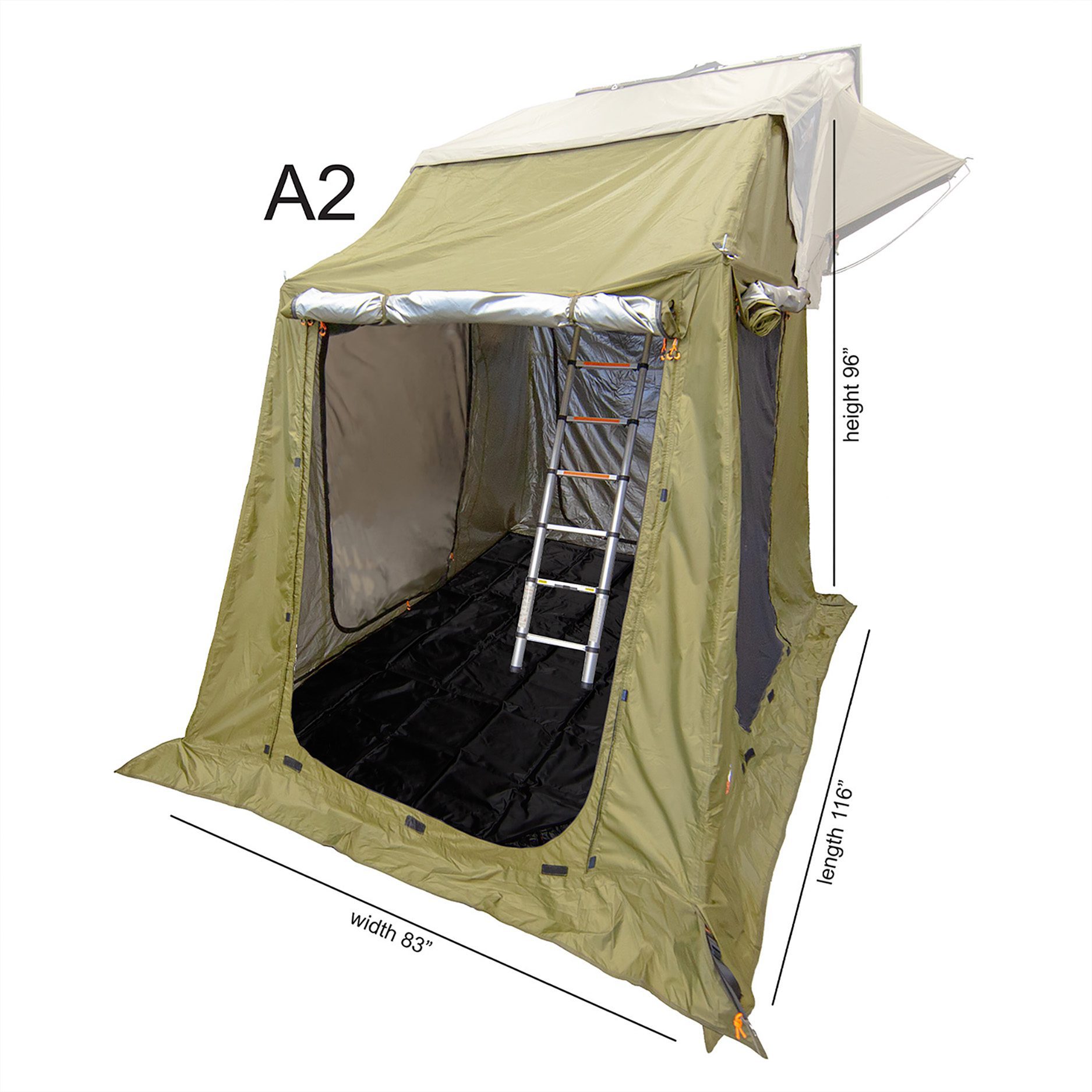

Side Height 96” H
Side Bottom Width 116” W 119” W
Side Top Width 85” W 94” W
Front Bottom Width 83” W 92” W
Front Top Width 67” W
Front Height 74” H
Vehicle Access Door 46” W x 66” H 46” W x 66” H

Compatible With

  • Armadillo A2 and A3 tents respectfully



Some Recommendations

  • The Armadillo A2 / A3 Roof Top Tent Annex is not intended to be stored within the main tent while zipped to the rain fly or attached to the sail track.
  • Secure all four corners with stakes and attaching guy lines to the two poles
  • Don’t store the annex while attached to the rain fly or sail track

Additional information

FITS

A2, A3
